After Effects is known for its amazing visual effects, but it can also work in tandem with audio! By importing audio files into the program, you open up a whole new set of possibilities for your projects. This tutorial will take you through the step by step process of using a particular effect called Audio Spectrum. This one effect alone can produce super cool visual accompaniment to all your audio tracks.

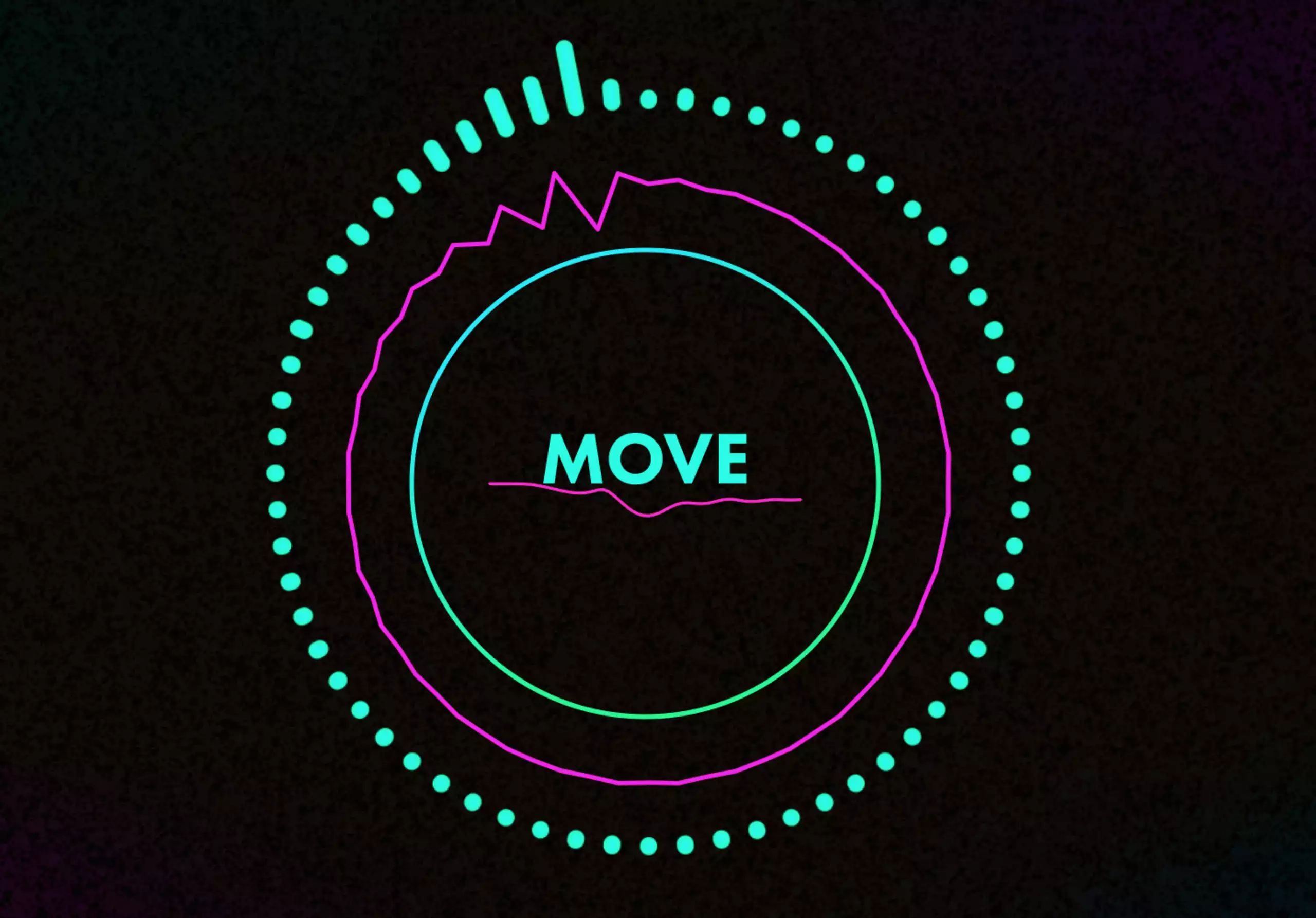

The Audio Spectrum Effect in After Effects

Getting the Project Files

  1. Download the project files.
  2. After the download has finished, be sure to unzip the file if it hasn’t been done for you. You should end up with an After Effects Audio Spectrum folder.
After Effects Bootcamp: Live & Hands-on, In NYC or Online, Learn From Experts, Free Retake, Small Class Sizes,  1-on-1 Bonus Training. Named a Top Bootcamp by Forbes, Fortune, & Time Out. Noble Desktop. Learn More.

Project Overview

We’ll be focusing mainly on the Audio Spectrum effect, applying it and altering its settings a few times to get a different look for each layer. We’ll also be doing some minor animation to add some more visual interest, and dabbling a bit into Masks which can work together with our Audio Spectrum effect.

Let’s get to it!

File Setup

  1. Upon opening the file, you’ll see a couple of layers already in the project. They’re just there to get you started and add a bit of sheen to the look, so don’t worry about them. We’ll be making our own layers in this tutorial mostly and using those. So first things first, select the text layer in the layer stack.
  2. Find the Layer > New > Solid option in the top toolbar.
  3. Click on Solid.
  4. For the name, type in inner audio circle.
  5. Click OK.
  6. This will create a new Solid layer in your composition, covering the rest of your objects depending on where it is in the layer stack.
  7. Locate the Shape Tool in the toolbar.
  8. Click on it.
  9. If the Ellipse isn’t active, click Q on your keyboard to cycle through the options until you land on it.
  10. With Ellipse now activated, Shift-Click and drag on the new Solid, creating a perfect circle.
  11. In the layer stack, you should see that a Mask has been added to your Solid. If you don’t see it, click M on your keyboard with the Solid layer selected.
  12. Next to Inverted, there should be a box. Click it.
  13. This will invert your Masked layer from an opaque circle to a Solid layer with a hole in the middle. This is because the Mask containing your Solid layer got “flipped inside out” or as After Effects, inverted.
  14. Select the inner audio circle layer.
  15. Click and drag the layer until the circle looks to be about in the middle, centering around the smaller circle. My coordinates are 960, 480, but yours can be different depending on how you have created your circular Mask.  To check your coordinates, click P on your keyboard with the inner audio circle layer selected. This will bring up the Position attribute so you can alter and see the coordinates of your layer relative to the canvas. It doesn’t have to be perfect, but the main idea is to have it visually look centered.
  16. With inner audio circle still selected, go up to Effect > Generate > Audio Spectrum
  17. Click on Audio Spectrum. This will add the effect to your selected layer, inner audio circle.
  18. In the Effect Controls that appear, we’ll be adjusting some settings. For a start, let’s connect this audio effect with its, well, audio. Click on the dropdown menu next to the Audio Layer setting.
  19. Locate the Xtasy by Lahar layer, which should end in mp3.
  20. Click on it.
  21. This will connect the Audio Spectrum effect to the audio it’s visually responding to! You can check it out by dragging the Playhead back and forth over the Timeline.
  22. We do need this effect in a circular shape, though. Luckily, we’ve prepared for that. Locate the dropdown menu besides Path.
  23. Click on Mask 1. This will shape the Audio Spectrum effect to the circular Mask we placed down before.
  24. Looks cool, right? You might be surprised, but this is actually most of the work already. We’ll just be adjusting settings and copy-pasting from here on out! Let’s change the Frequency Bands to 65.
  25. Change the Maximum Height to 1150.
  26. For Thickness, change that to 5.
  27. Softness, we’ll turn that all the way down to 0.
  28. Now for Inside Color, click the square to bring up a color picker.
  29. Enter #E800FF in the hex code.
  30. Click OK.
  31. And Outside Color, click the square to bring up another color picker.
  32. This hex code will be #FF00D1.
  33. Finally, down at Display Options, change it to Analog Lines. That’s the first and most complex circle done! We’ll just add one last detail.
  34. The blue-green circle that was there before actually has some keyframes put in for your convenience. You can’t tell because it’s a circle, but it’s revolving in a 360 circle. Select the circle layer with the Selection Tool.
  35. Hit R to open up the Rotation keyframes so you can see that it’s animated.
  36. In the Parent and Link column, in the inner audio circle layer, you’ll see a little swirly icon.
  37. Click and drag from the swirly Pick Whip to the circle layer. This will have your inner audio circle layer imitate whatever animation is applied to its parent layer, the circle layer. Now it’ll be rotating around!
  38. Click and drag the Playhead back to 00;00;00;00
  39. Hit Spacebar to preview your animation.

Outer Circle

  1. This one will be easier.  Select the inner audio circle layer.
  2. Cmnd-D (Mac)/ Cntrl-D (PC) will duplicate your inner audio circle layer.
  3. With the duplicate layer selected, press Return (Mac)/ Enter (Windows).
  4. Rename the layer outer audio circle.
  5. Press S on your keyboard to bring up the Scale property.
  6. We want this circle to be bigger, so let’s resize it to about 125% in the Scale attribute.
  7. In the Parent Picker options, our new layer has also duplicated which layer it’s parented to. However, we want this circle to remain in place, so click on the dropdown menu beside the swirly Pick Whip.
  8. Click on the None option.
  9. Ok, now let’s pretty up this layer by going into its Effect Controls in the top left.
  10. The Maximum Height will be 1330.
  11. The Thickness we’ll change to
  12. For Inside Color, click the colored box beside it to bring up the color picker.
  13. Enter hex code #00FFFC.
  14. Hit OK.
  15. Outside Color, click the colored box for another color picker.
  16. This hex code is #00FFC5.
  17. Click OK.
  18. In Display Options, click on the dropdown menu to show options.
  19. Click on Digital.
  20. Now for Side Options, click on that dropdown menu.
  21. Choose Side B. This will restrict the jumping lines to the outer or top side of your circle. Your new layer is all done! Pretty easy, right? We’ll just add one more instance of the effect, then call it complete!

Audio Spectrum Line

  1. Go up to the top toolbar, find Layer > New > Solid
  2. Click on Solid.
  3. Name the new layer audio line
  4. Click OK
  5. Now your new layer should be automatically selected, but if not, click on it.
  6. Go up to Effects > Generate > Audio Spectrum.
  7. Click S on your keyboard to show the Scale attribute.
  8. Enter 22%
  9. Hit P to open up the Position attribute.
  10. Enter 960, 540 for the coordinates, which should center it. You can also click and drag on the layer in the composition to center it.
  11. In the Effect Controls for the new layer, we’ll change some settings. For Start Frequency, change it to 1
  12. End Frequency will be 150
  13. Maximum Height, change that to 3550
  14. Thickness is 50
  15. And Softness, change that to 0
  16. Click on the dropdown menu besides to Display Options
  17. Choose Analog Lines
  18. Click on the dropdown menu besides Side Options
  19. Choose Side B
  20. Move the Playhead to 00;00;06;05
  21. Hit N on your keyboard to trim your animation to those six seconds.
  22. Bring the Playhead back to 00;00;00;00.
  23. Hit the Spacebar to play your animation. Looks cool, right?

And with that, your project is all done!


You did it! This is an effect that looks really slick but actually doesn’t take much work. You can go ham with the settings on your own, apply it to different Mask shapes, change up the audio clip, or even layer it with Gradients and Layer Styles. Place it over photos or videos for a cool contemporary music video look too!

Happy animating!
